From measurement in ambient air to measurement in materials. | |
|
HygroPalm:
portable indicator (with calibrator function) HygroLab: bench-top indicator (multi-channel, networkable) These indicators display relative humidity, dew point (and other computed parameters) as well as temperature. Available with a large choice of HygroClip probes for maximum flexibility of use. Optional software to display or log data on a PC and to compute various humidity parameters, either on-line or off-line. |
Hygromer
A1:
for measurement in air Hygromer S1: for the measurement of paper stacks and rolls Hygromer M1: for the measurement of materials in bulk These compact portable indicators have an integral swivel probe that can be folded under the instrument when not in use. Simultaneous display of relative humidity and temperature. Available as a set (with carrying case and calibration accessories) or as instrument alone |
|
|
Analog
Probes with linear voltage outputs
Relative humidity and temperature. Different configurations permit precise measurement in a variety of applications, over a broad range of conditions. |
HygroPalm Portable Humidity Temperature Indicator |
For
details, |
Models Probes Software Calibration |
||
Interchangeable Probe | |||
Probe & RS232 Connectors | |||
Robust Housing | |||
Large LC Display | |||
Five-Button
Keypad (Function Menu) |
Optional Docking Station | ||
Easy
Access to
|
Receptacle for A/C Adapter Power | ||
RS232 Connector | |||

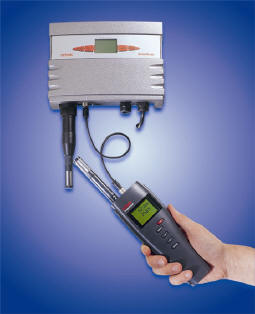

The HygroPalm uses the very latest in digital technology. Three versions satisfy the needs of all users. Each accepts a wide range of probes for maximum application flexibility. The probes are interchangeable to virtually eliminate any downtime during calibration or maintenance. The HygroPalm offers a wide range of features, including calculation of various humidity parameters, precise software based probe calibration, and on-site diagnostics / calibration of transmitters. The optional docking station is used to recharge the battery and to connect to a PC for data logging * and instrument configuration. * Not available with HygroPalm 1
|
HygroLab Multi-Channel Humidity Temperature and Water Activity Indicator |
Models Probes Software Calibration Datasheet |
|||
|
|||
Enter ON/OFF Up/Down |
|||
•
Developed for busy laboratory environments where multiple measurement
stations or probes co-exist, the HygroLab 2 features networking, allowing up to 32 instruments to be simultaneously controlled and monitored from a single PC. • Based on the very latest digital technology, HygroLab offers the user outstanding performance and flexibility, with up to four simultaneous probe inputs and an impressive number of functions. • Probes can be interchanged without loss of accuracy. The HygroLab features a full range of psychrometric calculations, software based measurement analysis and multi-point calibration. • An extensive range of
probes and water activity measuring stations make the HygroLab suitable
for almost any |
1H Portable Humidity Temperature Indicator
Specifications | Accessories | Software
Simple to operate and versatile, the A1H combines
advanced probe technology with a robust design
- Digital HygroClip-S plug-in probe
- Measuring range: 0...100%RH and -10...60°C
(-40...85°C with probe extension cable)- Swivel probe base provides for optimum viewing angle
of the LC display- HOLD function facilitates measurements in hard-to-reach places
- Operates with 9V alkaline battery or with AC adapter
- Auto-power-off conserves battery power
- Analog voltage outputs for use with a recorder or printer
- Fully interchangeable probe is replaced in seconds with
no loss of accuracy and no calibration- Optional HW3 software permits direct data logging/graphing
on a PC or laptop, data conversions and field calibration of
the HygroClip probe
Plug-in probe | HygroClip S (included) |
Humidity sensor | ROTRONIC Hygromer® C94 (capacitive) |
Temperature sensor | RTD Pt100 Ohm, 1/3 DIN |
Sensor protection | Wire mesh filter (standard) / foam filter (optional) |
HygroClip operating/measuring range |
0...100%RH -10...60°C plugged directly to A1H -40...85°C with probe extension cable |
A1H operating limits | 0...95%RH and -10...60°C |
Temperature unit (display) | °C or °F (specify when ordering) |
Accuracy at 23°C / 73°F | <±1.5%RH and ±0.2°C |
Repeatability | better than 0.5%RH and 0.1°C |
Resolution | 0.1%RH and 0.1°C |
Functions | Hold, auto-power-off (after 2 min.), battery status |
Display | LC dual |
Digital output | RS232 |
Analog outputs | 0...1V = 0...100%RH and -0.4...0.85V = -40...85°C |
Battery | 9V alkaline |
Current consumption | 5mA / 11mA when connected to a PC |
Material | A1H and HygroClip S: ABS |
Dimensions |
A1H Case: 190 x 63 x 26mm A1H Probe: Ø15 x 160mm HygroClip: Ø15 x 87mm |
Weight | 240 g |
A1H-Set | includes: A1H, HygroClip S, carrying case, ER-15 calibration device and one box of 5 certified standards (50%RH) |
HygroClip R | Fully
calibrated refurbished HygroClip S (HygroClip Exchange Program) |
AC1207 | 115 VAC adapter |
Hygrodata-A1H | HW3 software and PC data cable |
ET-86.1808.0501 | Printer / recorder cable for analog outputs |
MOK-XX-DAT05 | Extension
cable for HygroClip and A1H XX= 01 (1m / 3ft) or 02 (2m / 6ft) or 05 (5m / 15ft) |
HPH-CG-XX-DAT05 | Extension
cable with built-in amplifier for HygroClip and A1H XX = 01...99 (1 to 99m / 3 to 325ft) |
ER-15 | Calibration device for HygroClip |
EAXX-SCS | Certified
humidity standards (5 per box) XX = 00. 05, 10, 20, 35, 50 |
To open any item, click on the red dot in front of it |
|
Display data on the monitor | |
Record the data | |
Display data in a graph | |
Log File - Data Table |
The data from the indicator or
probe can be displayed on the monitor. The displayed
values can be the current values (regularly updated), the average, the minimum
or the
maximum.
Data from the A1H indicator can be
displayed as a live graph (constantly updated from right to left).
Similarly, data previously recorded to a log file can also be displayed.
Data from the A1H indicator can be recorded to a disk file.
After recording the data to disk, the log file can be displayed as a table.
Hygromer
S1:
for paper and cardboard
indispensable to the paper professional !
Specifications
|
Maintain
Product Quality |
Hygromer M1 / S1 Specifications
Humidity Accuracy at 20..25°C | 2%RH from 0 to 100%RH |
Temperature Accuracy | ±0.5°C |
Temperature Limits at Sensors | -5..50°C |
Resolution | 0.1%RH and 0.1°C |
Hygromer M1: for hygroscopic materials in bulk
Specifications
|
|
|
|
|
|
|
|
