Painoit
Dataloggerit

UUDEN POLVEN ROTRONIC -TIEDONKERUULAITTEITA

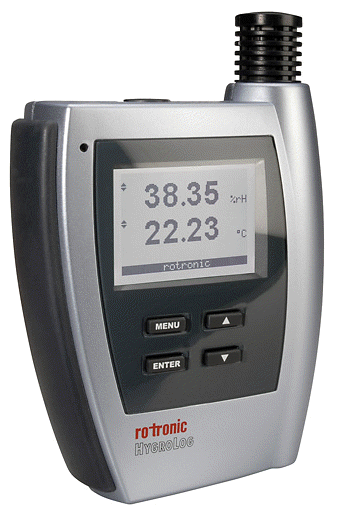

HygroLogNT

High End loggers
ROTRONIC industrial transmitters are robust,
high quality products designed specifically for demanding commercial and industrial applications.

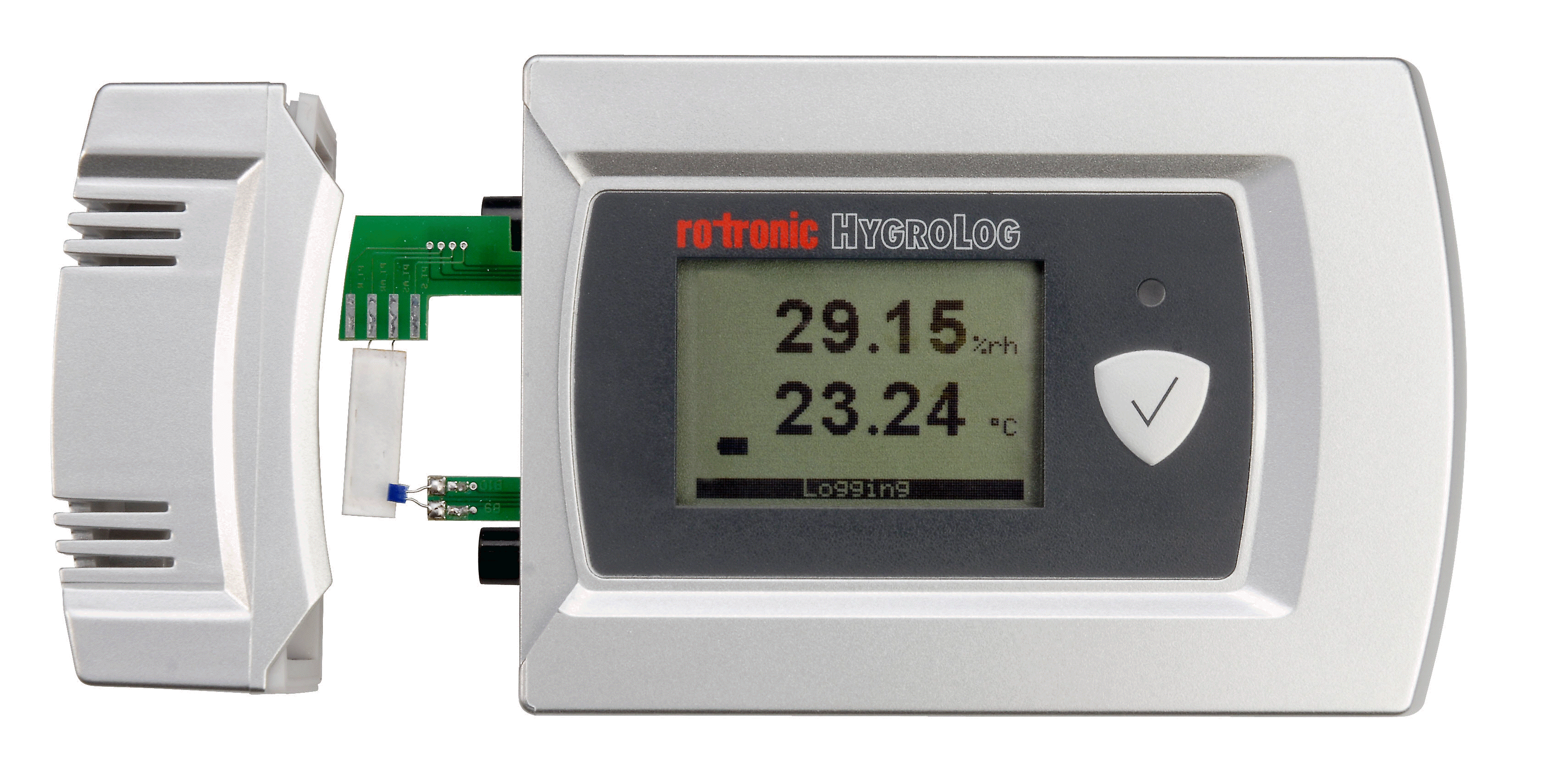

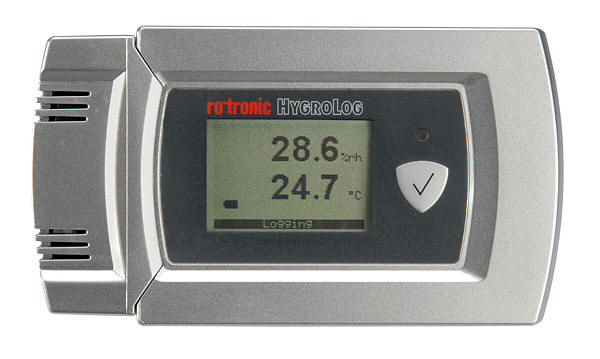

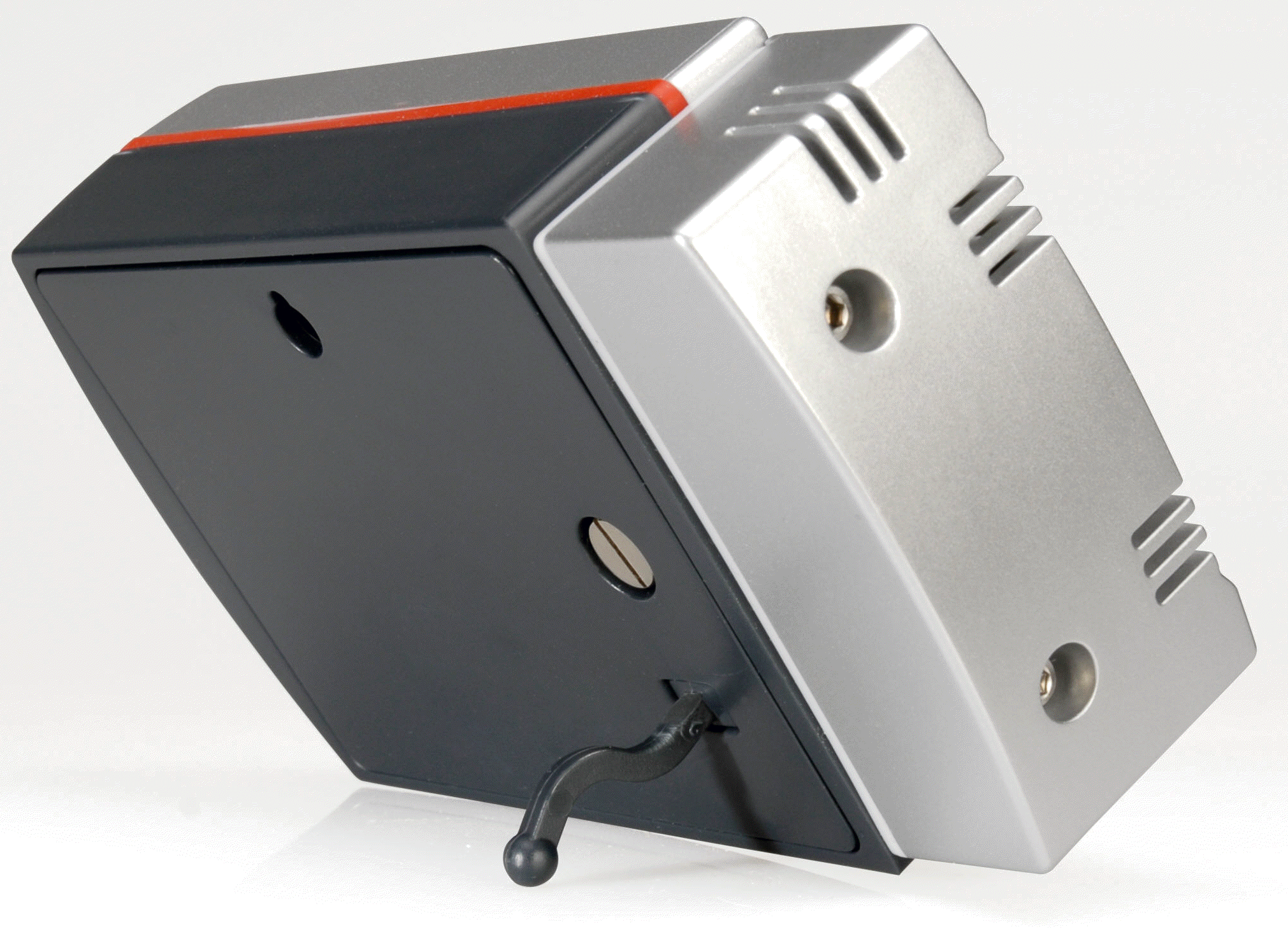

The ROTRONIC HygroLog HL-20/21
The perfect addition

HygroLog HL20D

Bassersdorf (Switzerland), 25 June 2010 – The new humidity and temperature HygroLog

HL-20/21 data logger from ROTRONIC expands on the already impressive HygroLog family of products .

With the new logger ROTRONIC has launched an economical and compact device on to the market that utilizes our latest AirChip 3000 technology and superior HygroMer® sensors.

When combined with the intuitive HW4 software all FDA CFR 21 part 11 and GAMP regulatory requirements are fulfilled.

Easy to Use and versatile

The HygroLog HL-20/21  is perfectly suited to many applications including those in critical areas such as pharmaceutical clean rooms, warehouses, production rooms, transportation containers, museums and test facilities.

In addition the
HygroLog HL-20/21  can monitor temperature and humidity values in buildings and office environments.

Programming, downloading, and graphing of recorded data is straightforward and uncomplicated with the HW4 software.

 Compelling features

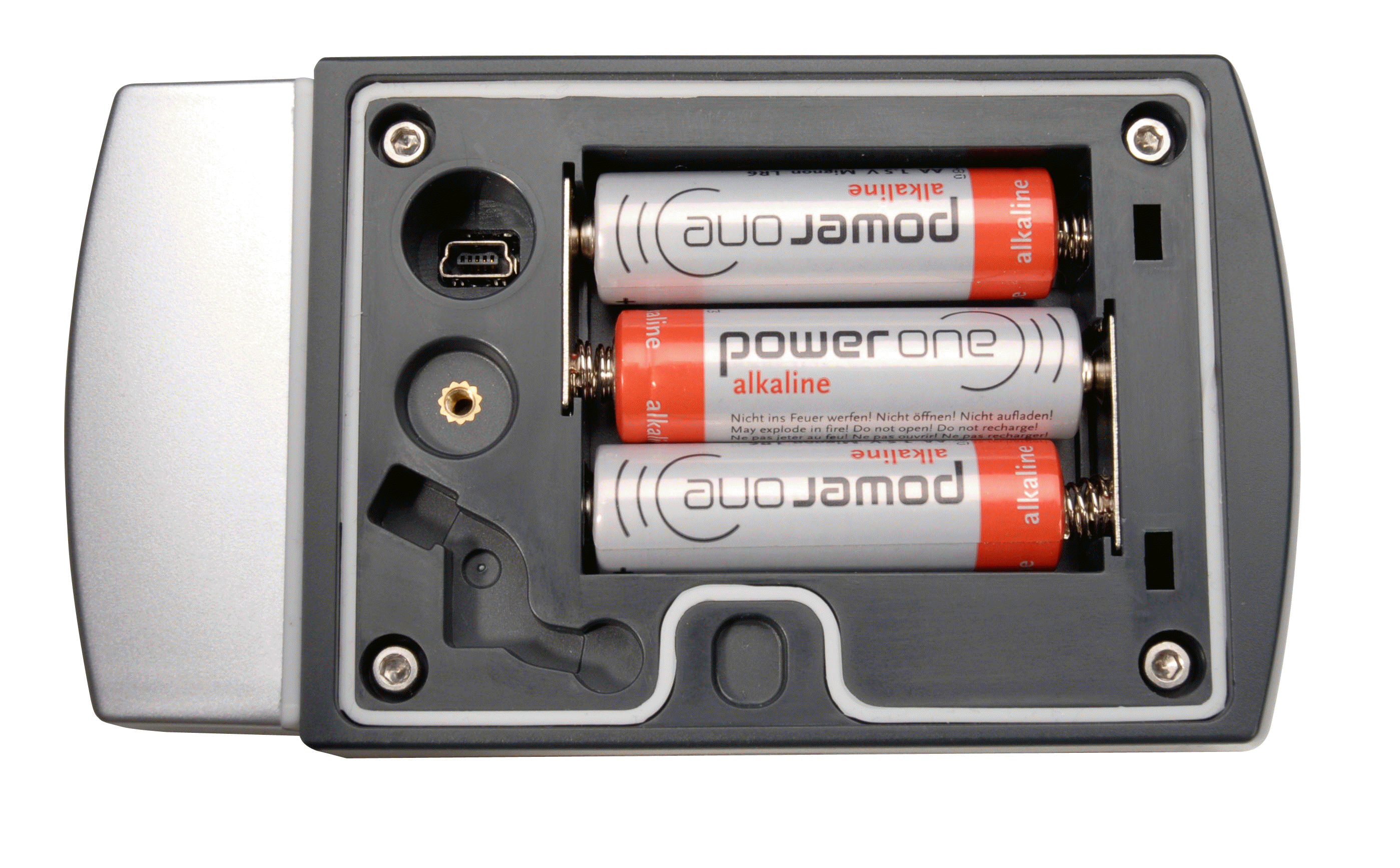

The HygroLog HL-20/21  has a large memory of up to 20,000 data points and a long battery life allowing you to record through your most demanding applications.

In addition to recording humidity and temperature it has the option of recording dew/frost points.

All recorded data is date and time stamped.

The accuracy of the HygroLog HL-20/21  is unparalleled at 0.8%RH and 0.2°C.

If it is essential that your recorded data be accurate and reliable then the HygroLog HL-20/21 is the logger for you.

You can find further detailed information on the new HygroLog HL-20/21 and all about humidity and temperature measurement at ROTRONIC at www.rotronic-humidity.com

 or by telephone at +358 500 205819.









HygroLog HL20




ROTRONIC
- Your competent partner for all matters relating
to all aspects of humidity and temperature measurement.

 For 40 years, ROTRONIC has been combining technical innovation with
Swiss quality.

The new HygroClip 2, with its integrated AirChip 3000, is setting new standards

in terms of accuracy, operating range and OEM flexibility.

ROTRONIC sells their products worldwide in 40 countries and has branches in the USA, Germany, Great Britain, France, Italy, Taiwan, Singapore and China.

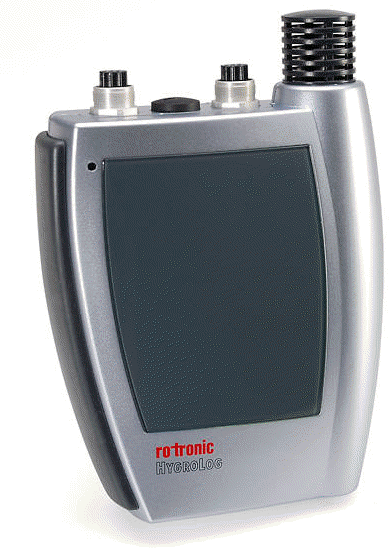

HygroLog NT2

Data logger for interchangeable HygroClip2 probes.

Detail

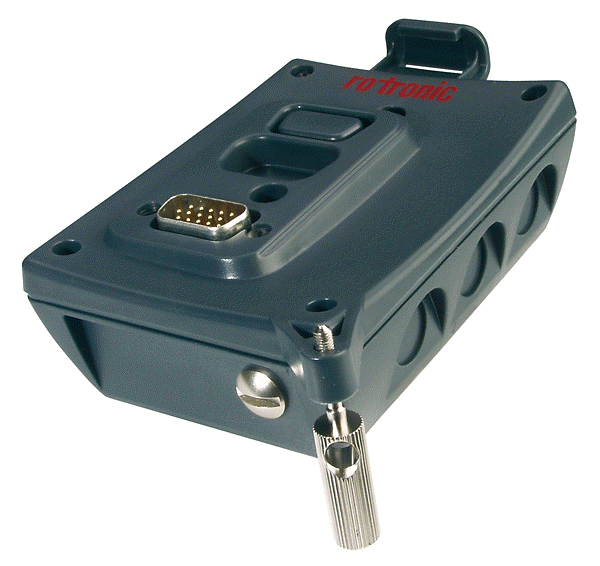

Docking Stations


Docking station for use as a mechanical mount for wall mounting.


Detail

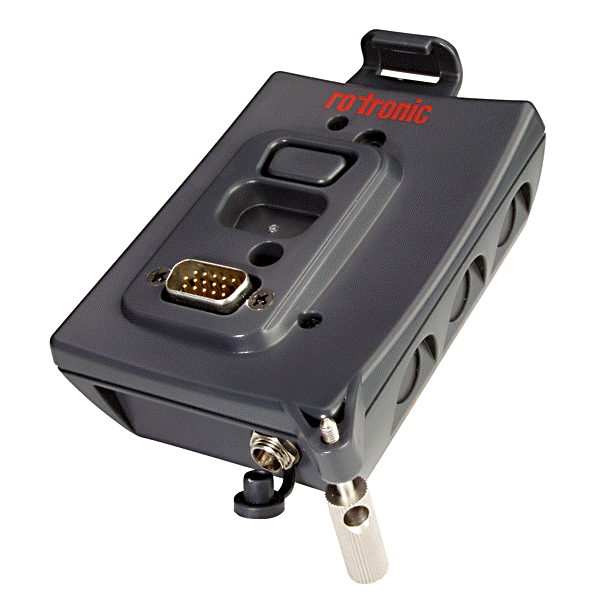

HL-DS-NT1


Docking station for external supply of the data logger.


Detail


HL-DS-NT2


Docking station for external supply of the data logger and RS232 and RS485 interface.

Detail


HL-DS-NT3


Docking station for external supply of the data logger and USB and RS485 interface.

Detail


HL-DS-NT4


Docking station for external supply of the data logger, using 2 switch inputs and Ethernet and RS485 interface.


Detail


HL-DS-NT4-WL

Docking station for external supply of the data logger, using 2 switch inputs and WLAN/RS485 interface.

Detail


HL-DS-NT4-WEB

Docking station for external supply of the data logger, using 2 switch inputs and WEB access (via Internet Explorer).

Detail


HL-DS-PT2

Docking station for external supply of the data logger, using 2 switch inputs and 4 Pt100 inputs.

Interface: USB & RS485.

Detail


HL-DS-PT4

Docking station for external supply of the data logger, using 2 switch inputs and 2 Pt100 inputs.

Interface: Ethernet & RS485.
Detail



HL-DS-PT4-WL
Docking station for external supply of the data logger, using 2 switch inputs and 2 Pt100 inputs.

Interface: Wireless & RS485.

Detail


HL-DS-R-1

Docking station for external supply of the data logger, using 2 switch inputs and 2 relay inputs.

Interface: USB & RS485.

Detail


HL-DS-U1

Docking station for external supply of the data logger, using 2 switch inputs and 4 digital or analog sensor inputs as well as RS232/RS485 interface.

Analog input for 0 ... 2.5 V.

Detail


HL-DS-U2

Docking station for external supply of the data logger, using 2 switch inputs and 4 digital or analog sensor inputs as well as USB/RS485 interface.

Analog input for 0 ... 2.5 V.
Detail


HL-DS-U2-420

Docking station for external supply of the data logger, using 2 switch inputs and 4 digital or analog sensor inputs as well as USB/RS485 interface.

Analog input 0 ... 20 mA / 4 ... 20 mA.
Detail


HL-DS-U4

Docking station for external supply of the data logger, using 2 switch inputs and 4 digital or analog sensor inputs as well as Ethernet/RS485 interface.

Analog input 0 ... 2.5 V.

Detail


HL-DS-U4-420


Docking station for external supply of the data logger, using 2 switch inputs and 4 digital or analog sensor inputs as well as Ethernet/RS485 interface.

Analog input 0 ... 20 mA / 4 ... 20 mA.
Detail








Advanced Humidity Temperature Data Logger

The HygroLog NT and associated HW4 software comply with FDA CFR part II regarding electronic record keeping.

Maailman johtava suhteellisen kosteuden mittalaitteiden valmistaja
 Rotronic esittelee uutuuden

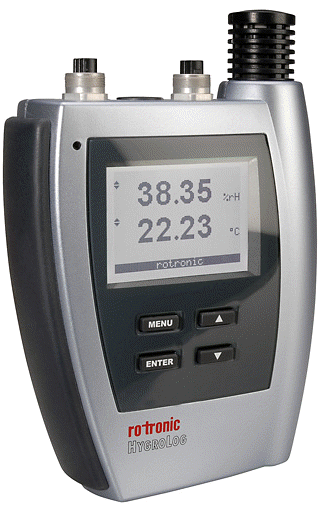

HygroLog NT -dataloggerin



HygroLog NT -dataloggeri

Täyttää FDA CFR 21 11

Graafinen näyttö

Flash Card -muistin lähes rajoittamaton kapasiteetti

Verkkoon kytkettävissä

Telakointiasemat lisäantureille yms...

Kaikki nykyiset HygroClip -anturimallit sopivat

Sveitsiläinen huippulaatu

Windows-ohjelma ja RS-232, RS458, USB tai

Datasheet HygroLog NT

HygroLog NT -dataloggeri on erityisen monipuolinen suhteellisen kosteuden ja lämpötilan mittaamiseen tarkoitettu tiedonkeruulaite.

Sillä voidaan mitata ja kerätä tietoja myös muilla antureilla kuten paine-, paine-ero-, ilmavirtaus- tms. antureilla.

Itse laitteeseen voidaan kytkeä kolme
HygroClip -anturia ja telakointiasemaan vielä neljä lisää
(
HygroClip -anturia, analogista anturia tai Pt100-lämpötila-anturia).



DS-U4



DS-U2


DS-PT4

Telakointiasemat


Mittaukset voidaan lukea tietokoneelle RS-232-portin, USB -portin tai langattoman Bluetooth :n kautta.

Tietysti Flash Card -muisti voidaan lukea myös asiaan kuuluvalla lukulaitteella.

Rotronic HW4 -WIN -ohjelmalla voidaan laitetta ohjelmoida, mittauksia lukea ja tarkastella esim. graafisina kuvaajina jne.

Ohjelman Professional-versio täyttää myös USA:n Elintarvike- ja Lääkeviranomaisten (FDA) dokumentin CFR 21 11 vaatimukset (mm. tapahtumien, käyttäjien ym. kirjaukset).

Kaikkien HygroClip -anturimallien tarkkuus on maailman huippuluokkaa ±1,5%RH koko alueella 0...100%RH ja ±0,3°C.

SCS-todistuksella
varustetun anturin vastaava tarkkuus on ±1,0%RH ja ±0,2°C.

Kosteutta voidaan mitata laajimmillaan jopa alueella –50...200°C.

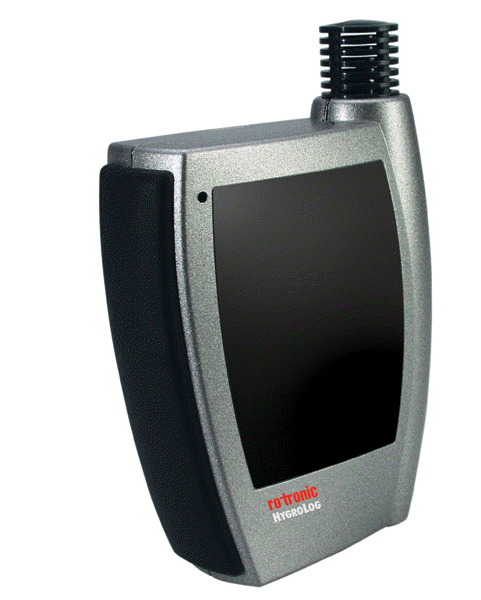

Tiedonkeruulaite HygroLog NT1
Advanced Humidity and Temperature Data Logger

The HygroLog NT and associated HW4 software comply with FDA CFR part II regarding electronic record keeping.

Takaisin alkuun




HygroLog, HygroLog D , HygroClip S ja HW3
Tuotannosta poistuneet, edelleen käytössä sekä myynnissä.
Huolto-, kalibrointi- ja varaosapalvelut ovat toimistossamme Espoossa.

HygroLog -mittari/tiedonkeruulaite
HygroClip -mittausanturi

HygroLog on edullinen tiedonkeruulaite, joka kuuluu HygroClip S -tuoteperheeseen.

LCD-näytöllä varustettu
HygroLog D on samalla myös mittari, joka näyttää suoraan suhteellisen kosteuden (%RH) ja lämpötilan (°C).

HygroLog:n muistiin mahtuu yhteensä 10 000 mittausta.

Kerättyjen tietojen luku ja tarkastelu tapahtuu helppokäyttöisellä Windows-ohjelmalla

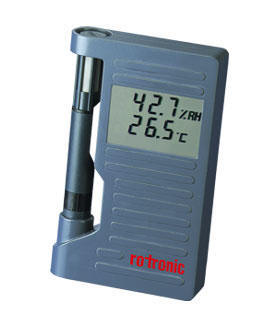

HygroLog-D

Tiedonkeruulaite / Dataloggeri
Museoiden suosikki

HygroLog D
(D = Display / näyttö)

jossa asennettuna
HygroClip S -mittausmoduuli

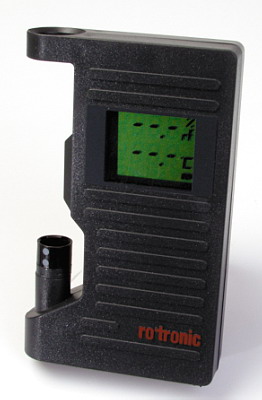

HygroLog D ilman anturia

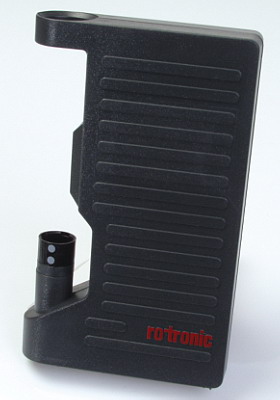

HygroLog


HygroLog D
kumisuojakalossilla

Tarvikkeet


Suojakalossi

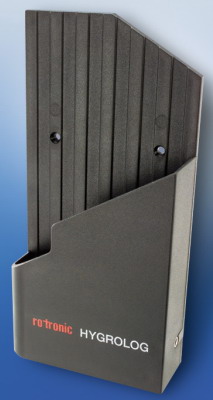

HygroLog-seinäteline AC 1207

Tekniset tiedot:

Valmistaja


Ag
Sveitsi

Mittauselimet:
Suhteellinenkosteus
: HYGROMER® CK-90
ainoa maailmassa: kastepistettä
ja kondenssivettä kestävä

Lämpötila: Pt100 Ohm

Digitaalinen ulosanto (DIO)
Analoginen ulosanto (ROV)
Suhteellinenkosteus: 0..1V, 0..100%RH
Lämpötila: -0,5..2V, -50..200°C

Lämpötilatoiminta-alue:
 HygroClip S: -40...+85°C
HygroLog D:
-10...+50°C

Tarkkuus (23°C:ssa):
Suhteellinenkosteus: ±1,5%RH koko toiminta-alueella!
±1%RH (SCS-sertifikaatilla) ainoa maailmassa

Lämpötila: ±0,3°C

Mittari- ja tiedonkeruulaite, esimerkkisetti:

HygroLog D -mittari-/tiedonkeruulaite
10 000 mittausta, josta:
5000 kpl %RH,
5000 kpl °C,
max: 416 vuorokautta

HygroClip S -moduulianturi ø15mm 10cm tai

HygroClip-moduuli asetettuna HygroLog:iin:
Suhteellinenkosteus: 0...100%RH,
Lämpötila:  –10...50°C

 HygroClip-moduuli pidennysjohdon päässä:
 Suhteellinenkosteus:
0...100%RH

Lämpötila:
–10...50°C

HygroClip SC05 ø5mm 2m ø4mm vaijerianturi

HygroData HL sisältä : RS-232 johdon ja HW3-Windows-ohjelman

3 x 1,5V alkaliparisto

Home Page USA-sivut
 Data Loggers and Printers Main Page-USA-sivut
 HygroClip Product Line USA-sivut
Contact us



For details,
click on any feature



Software

Anturi

LC-näyttö
Muistikortti

Anturiliitin
sekä RS232
ulosotto

3x1,5V-alkaliparistot

9VDC-liitin

The HygroLog is compact, accurate and calibration free

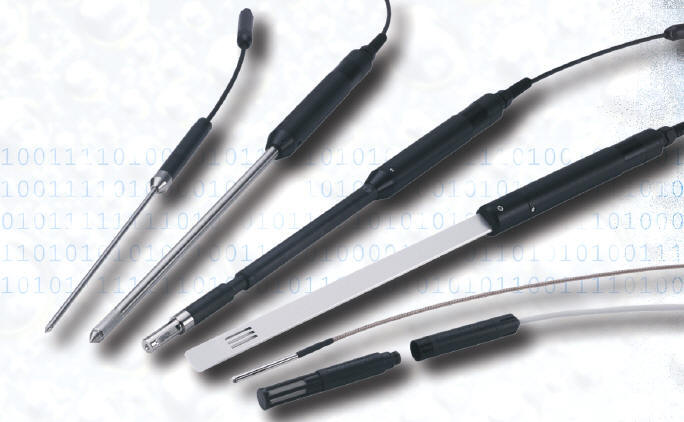

Probes/anturit



VARASTOTUOTTEET

<Linkki Rotronic USA:n HygroLog-sivuille>

Takaisin alkuun

Transmitters

Historiallinen (1998)
AGENT D
, HygroClip-mittapäällä
