Painoit

HP23-AW-SETTI/14


Esittely

Rotronic HP23-AW SET/14 sisältää:

  • HygroPalm 23 mittari näytöllä

  • AW-DIO tuotenäytteiden mittausanturi

  • WP14-S näyterasiakammio

  • PS-14  100 kpl läpinäkyviä/kannellisia näyterasioita, 14mm syviä.

  • EA35-SCS  1 laatikko 35 %RH kosteusstandardikalibrointiliuosta

  • EA80-SCS  1 laatikko 80%RH kosteusstandardikalibrointiliuosta

  • AC1119 pehmustettu kovamuovinen kanto/säilytyslaukku


The HP23-AW is a battery operated water activity indicator with a single probe input,
it features three operating modes:

  • AwQuick: accelerated water activity measurement with automatic end of measurement

  • AwE: conventional water activity measurement with automatic detection of equilibrium and automatic end of measurement

  • Standard: water activity and temperature measurement, limited to just indicating the values and the trend of the values.

 Rotronic:n HP23-AW is compatible with all the models of HygroClip probes to permit the direct measurement of products in bulk and quality control of packaging materials.

The probes used with the HP23-AW indicator can be calibrated and adjusted at one or more points, directly from the instrument keypad.
Reference humidity values are provided by using the
ROTRONIC certified humidity standards.

A docking station is available for table top use.
When used with an external AC adapter, this allows powering the instrument without draining the battery.
Battery charging is possible with the appropriate type of battery.



Operation

The HP23-AW Set is simple to use:

1) From the keypad of the HP23-AW, use the MENU key to select the measuring mode.
    Note: the
HP23 automatically remembers the last selected mode.

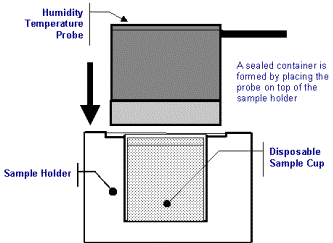

2) Place a product sample inside the sample holder.
Put the probe on top of the sample holder.

3) AwQuick or AwE mode: start the
    measurement by pressing on the ENTER key
    on the keypad of the
HP23-AW

    Example: on the bottom line of the display, the AwQuick mode is indicated by Q1, followed by
    the time into the measurement and by the letter
R (process is running)

4) When the measurement is ended, the display freezes.
Two black rectangles appear to the left of the values and the letter
S (bottom right) indicates that the process has stopped.

5) Press the ENTER key to clear the display and to be ready for the next measurement.


Probes

standard probe HC2 AW  included in set

HC2 AW & HC2-AW-HH
for measurement of product samples

Requires use of a sample holder and disposable sample cups included in set - click on the link Probe Accessories, above).

additional probes - order separately

HC2 HP28 & HC2 HP50 insertion probes
for the direct measurement of materials in bulk: powders, granules, grain and seeds

max. 85ºC
sintered steel filter
tube length: 280, Ø: 10mm cable: 2m


HC2 SC05
for measurement in tight spaces such as inside a product package

max. 100ºC
Ø: 5mm , cable: 2m

HC2 HS28 sword probe
for measurement of packaging materials such as paper or cardboard stacks/rolls

max. 85ºC
blade length: 280 , width: 18mm , thickness.: 4mm, cable: 2m
