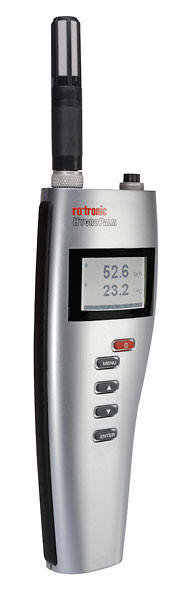

HygroPalm HP21: Humidity Temperature Handheld Indicator

The HP21 is a highly accurate hand-held indicator that displays relative humidity, temperature and the dew or frost point.

The HP21 is perfect for spot checking HVAC installations, manufacturing and storage areas, and generally for all ambient air measurement within the temperature range of -10 to 60°C.

The key features of the HP21 will meet user requirements ranging from the most basic to demanding.
The HP21 indicator has an extensive set of settings and functions that can be configured and enabled by the user with the ROTRONIC HW4 software.

In spite of its sophistication, the HP21 can still be used just as a simple humidity and temperature indicator.

Whether you decide or not to take advantage of its full potential, the HP21 will let you have it your way.

HYGROPALM21

HygroPalm handheld units are universally recognised as some of the very best available in terms of accuracy, reliability and function.

These latest units offer a range of features unheard of only a few years ago, and in combination with a high standard of build, will provide you with years of dependable measurements.

 With its fixed probe, the HP21 is our most cost effective instrument, yet it still boasts a ±1% accuracy specification and a PC interface for configuration and probe log data download.



SPECIFICATIONS:
Applications Food pharmaceutical industry, printing and paper industry and science and meteorology and climate experts
Probe type Integrated, Airchchip3000 type
Humidity sensor ROTRONIC Hygromer® M3-R
Temperature sensor Pt100 1/3 DIN Class B
Long term stability <1%rh / year
Measuring range with integrated probe -10…60 °C / 0…100 %rh
Measuring range with interchangeable probe 0…100 %rh and -50…100 °C
Calibration / adjustment Adjustment via keypad: 1 point offset
Accuracy at 23 ±5 °C ±1.0 %rh / 0.2 K
Response time t 63 < 3 Seconds
Start-Up time Typical 2 sec
Measurement interval typically 1 second (without calculations)
Electronics Operating range -10…60 °C
Maximum airflow 20 m/sec
Display type Freely configurable graphic display
Backlight Yes
Battery indicator Low Batt. Display
Exploitation software ROTRONIC HW4
Menu guidance Yes
Trend indicator Yes
Statistical functions Min./ Max., Average
Probe adjustment by software With Servicecable
Psychrometric calculations Dewpoint / frost point
Event logging System related events (FDA, GAMP)
Firmware update Via Internet / HW4 Software
User information From HW4 Devicemanager
Data processing via HW4 Graphics, statistics, analyses, training, etc.
Device Protection by password Yes
Sensor diagnostics (drift, state) Programmable. Factory setting: off
Audit Trail/ electronic records FDA 21 CFR Part 11 /GMP compatible
External datalogging 2000 records
Power supply / Power consumption 9 V battery, power supply
4 mA consumption without lighting
Choice of Battery / rechargeable battery Yes
Communication interfaces ROTRONIC Interfacecable HW4 compatible
Service Interface UART
Max. able length service cable 5 m
Filter cartridge Polyethylene filters
Enclosure material ABS
Dimensions 268 x 72 x 30 mm
Weight approximately 210 g
IP protection rating IP40
Fire protection class Conforms UL94-HB
FDA/GAMP compatibility FDA CFR 21 Part 11 and GAMP
Data sheet Download
Order code HP21
