Kosteus, lämpötila sekä CO2-mittaus,

Sveitsiläinen tarkkuus korkeimmalla tasolla!



ROTRONIC:n virallinen maahantuoja vuodesta 1983!

            Meiltä saat kaikki Rotronic-mittarit ja niihin täydellisen
käyttöopastuksen 30-vuoden kokemuksella.

Sarja huipputarkkoja suhteellisen kosteuden sekä
lämpötilan mittareita ja vaihdettavia antureita.
Täydellinen kosteus / lämpötilamittaus
HygroPalm-käsimittareilla eri HygroClip-anturivaihtoehdoilla
on edelleen käytössä.

ROTRONIC:n uusin vallankumouksellinen tuotesarja on nyt saatavana!

Humidity Probes, Meters, Transmitters, Data Loggers and Generators

Kosteusanturit, mittarit, lähettimet, tiedonkeruulaitteet sekä kosteuden kehittimet







Referenssisetti

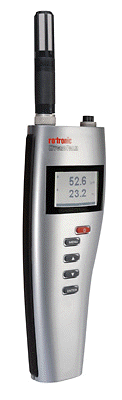

HygroPalm - HP23-A




The HygroPalm23-A is the high-end product in our range of handheld instruments.

Apart from measuring humidity and temperature, it also calculates all psychrometric parameters and offers various additional functions.

The measurement results can be recorded continuously and these separated simply using the batch function.

All ROTRONIC transmitters in the Airchip 3000 series can be adjusted with the HP23-A via a service cable.

Applications
Mobile applications in HVAC, the pharmaceutical industry, building management systems, museums and warehouses

Features
• Data recording function up to 10'000 data records (with date, time, batch no.)

• Two probe connections for all ROTRONIC HC2 probes or analog third-party probes

• Adjustment of transmitters HF3, HF4, HF5, HF7, HF8, via service cable

• All psychrometric calculations

• Integrated clock (real time clock) for timestamp for every measured value

• Battery charging function



• Interface (USB)

HygroPalm - HP23-A (with HP-DESK station and as reference for HF5)


LÄHETIN HF5








Miekkamallinen-GTS



Rotronic-maskotti

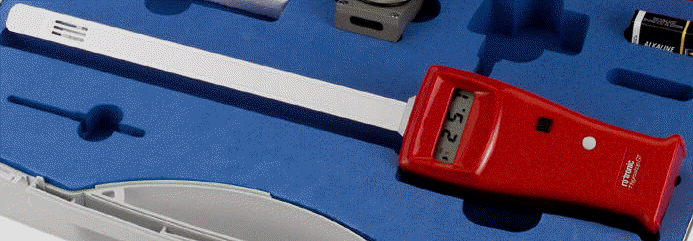

GTS-miekkamallinen paperimittari

GTS Data Sheet

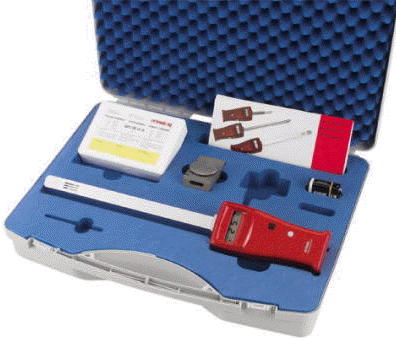

GTS-Set



Kansainvälinen settitarjous


Kansainvälisen yhteiskampanjan erikoistarjous!
HygroPalm22-Setti




Kansainvälisen menestyksen ykkönen!

HL-20D








Meteo sensor with interchangeable sensor module

Tutustumistarjous

Tekniset tiedot

MP102H and MP402H series probes provide first class accuracy and stability.

Based on the HygroClip HC2-S3 probe, they have linear voltage or current outputs for secure transmission.

An RS485 interface is also provided.

MP102H
Meteorology probe with linear voltage output for the use with
HygroClip S3 probes.

MP402H
Meteorology probe with linear current output for the use with HygroClip S3 probes.

Highlights

Relative humidity and temperature measurement with interchangeable
HC2-S3

Highest accuracy at 0.8 %rh and 0.1 °C

Range of application: 0…100 %rh and -40…80 °C

All psychrometric calculations available

Current and voltage output signal

Outstanding long-term stability

Optional: directly connected Pt100 sensor

Resistant to air pollution and moisture condensation

UART- and service interface to PCB

Technical specifications:
- Measurement ranges and accuracy: 0.8 %rh and 0.1 °C
- Operating ranges: 0…100 %rh and -40…80 °C

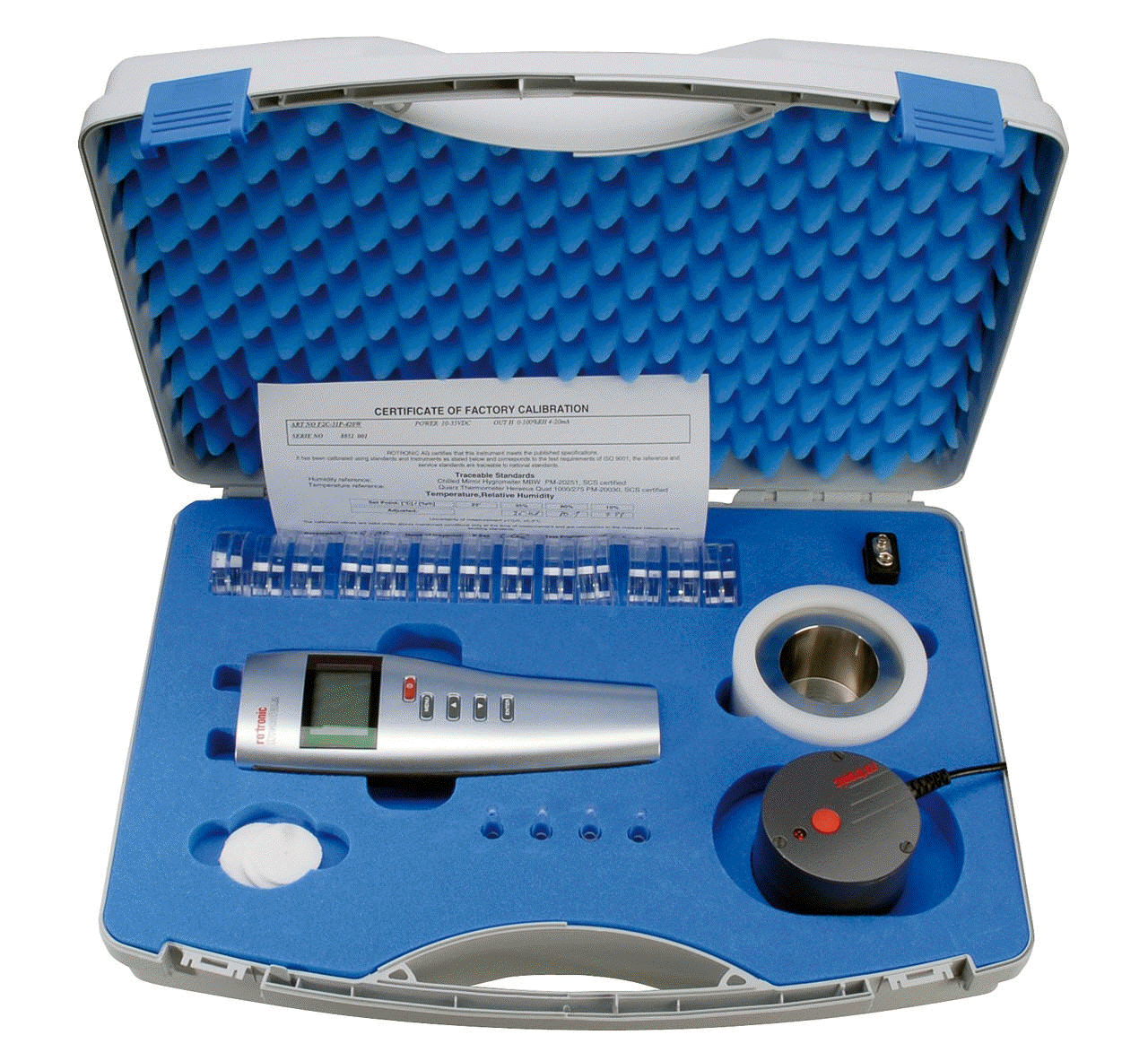

The HygroPalm23 Cased Set - Guarantees efficient measurement of water activity
More information

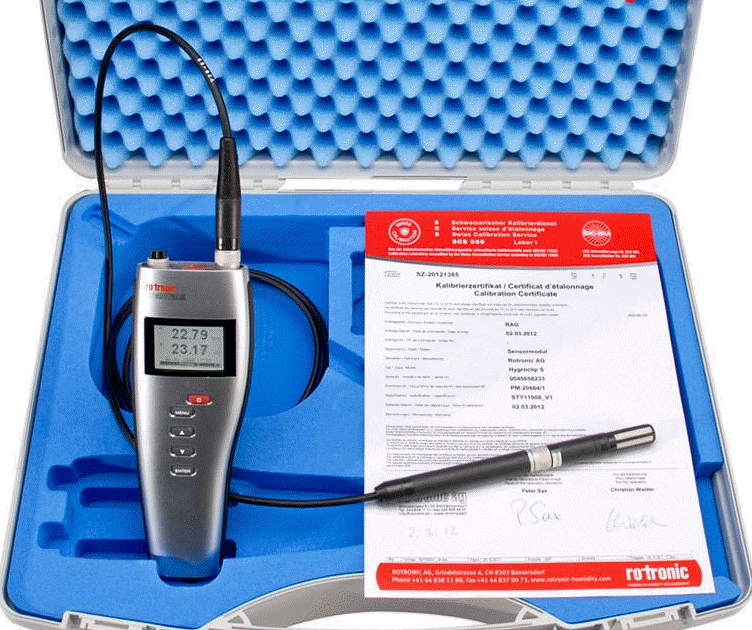

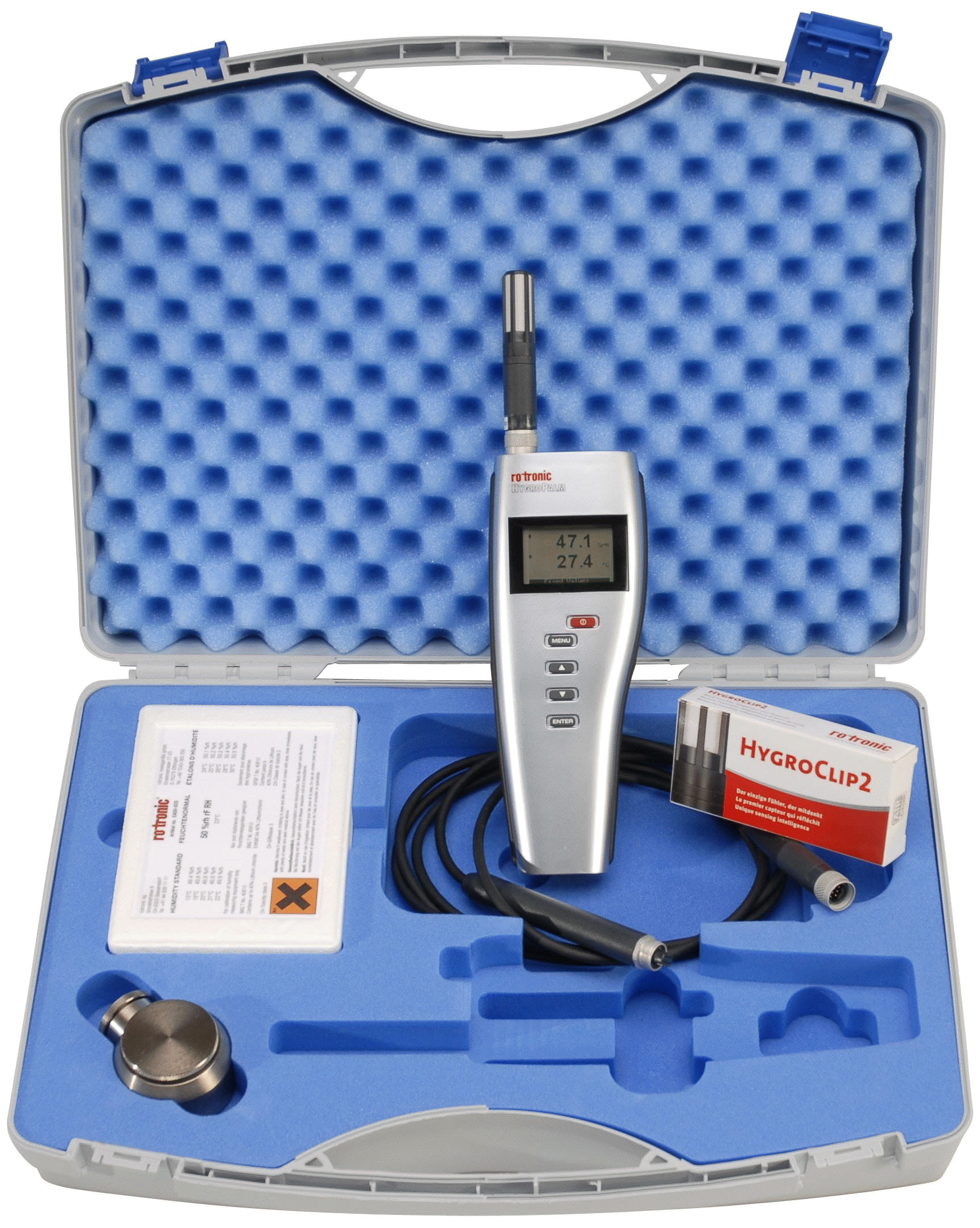

The HygroPalm22 Cased Set – all you need for precise measurements
More information






HP23-AW-SET-40




Katso lisää  Veden aktiivisuus AW :sta

Rotronic:n tuotteet jossa on jo HygroClip2-tekniikka!

Katso Rotronic:n pääkatalogista.

Humidity News 2011

Selaile Rotronic:n uusinta katalogia!





AirChip 3000

Humidity Measurement Technology

Our latest generation of humidity probes and instruments is based on the AirChip 3000 technology.

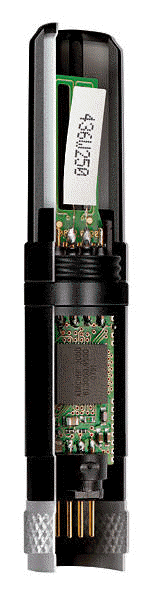

The AirChip 3000 (shown here mounted on a small PCB) consists of an ASIC (Application Specific Integrated Circuit),
a microcontroller and a memory (EPROM), all in a single chip.

This gives the AirChip 3000 the functionality of a small specialized computer.

The basic function of the AirChip 3000 is to accurately condition and process the signals from two external sensors:
a humidity sensor and a temperature sensor, and to provide both digital and analog output signals.

Superior accuracy is achieved by using over 30,000 reference points for the linearization and
temperature compensation of the RH sensor and by using a 4th degree polynomial,
conform to IEC / ASTM standards, for the linearization of the Pt100 RTD temperature sensor.

The
AirChip 3000 features a wide temperature operating range as well as an extensive set of
configurable
settings and functions designed to help the user achieve important objectives such as:

Maintaining both the long-term accuracy and reliability of the measurement system

Protecting the process being measured against a probe or sensor failure

Protecting the devices connected to the measuring instrument against a probe or sensor failure

Safeguarding against accidental or malicious actions by users

Validating the measurement loop after a new installation or during routine maintenance


The AirChip 3000 products are designed for compliance with the GAMP and FDA regulations
regarding electronic records and electronic signatures (ERES).


ROTRONIC is already known for the unparalleled repeatability and durability
of the
Hygromer ® capacitive humidity sensor.

ROTRONIC Hygromer ® Humidity Sensor

There is a difference in humidity sensors!
Don't make the mistake of assuming that all relative humidity sensors perform the same.


Developed by ROTRONIC, the Hygromer sensor is the result of
many years of experience in humidity measurement and is uniquely different.

The Hygromer is a thin film capacitive sensor with unparalleled accuracy,
repeatability and durability even under extreme climatic conditions and severe pollution.

Special formulation of the dielectric polymer that is at the core of the sensor,
careful selection of all other materials used in the sensor,
and tight manufacturing standards contribute all to make the
Hygromer sensor superior.

Hygromer IN1 Humidity Sensor

Hygromer,C94,Humidity,Sensor,Rotronic
Magnified View of the
Hygromer sensor.


Average life time well in excess of 10 years.


Practically maintenance free, with long intervals of time in between calibrations.


After exposure to high humidity over long periods of time,
recovers faster and exhibits less calibration shift than other sensors


Survives long term exposure to temperatures of up to 200°C.


There is no known limit for temperatures below freezing.



This is further enhanced with the introduction of the AirChip 3000.



HygroClip HC2-S
Ilmastomittava kosteus/lämpötila-anturi
jossa on
AirChip 3000 !


Rotronic

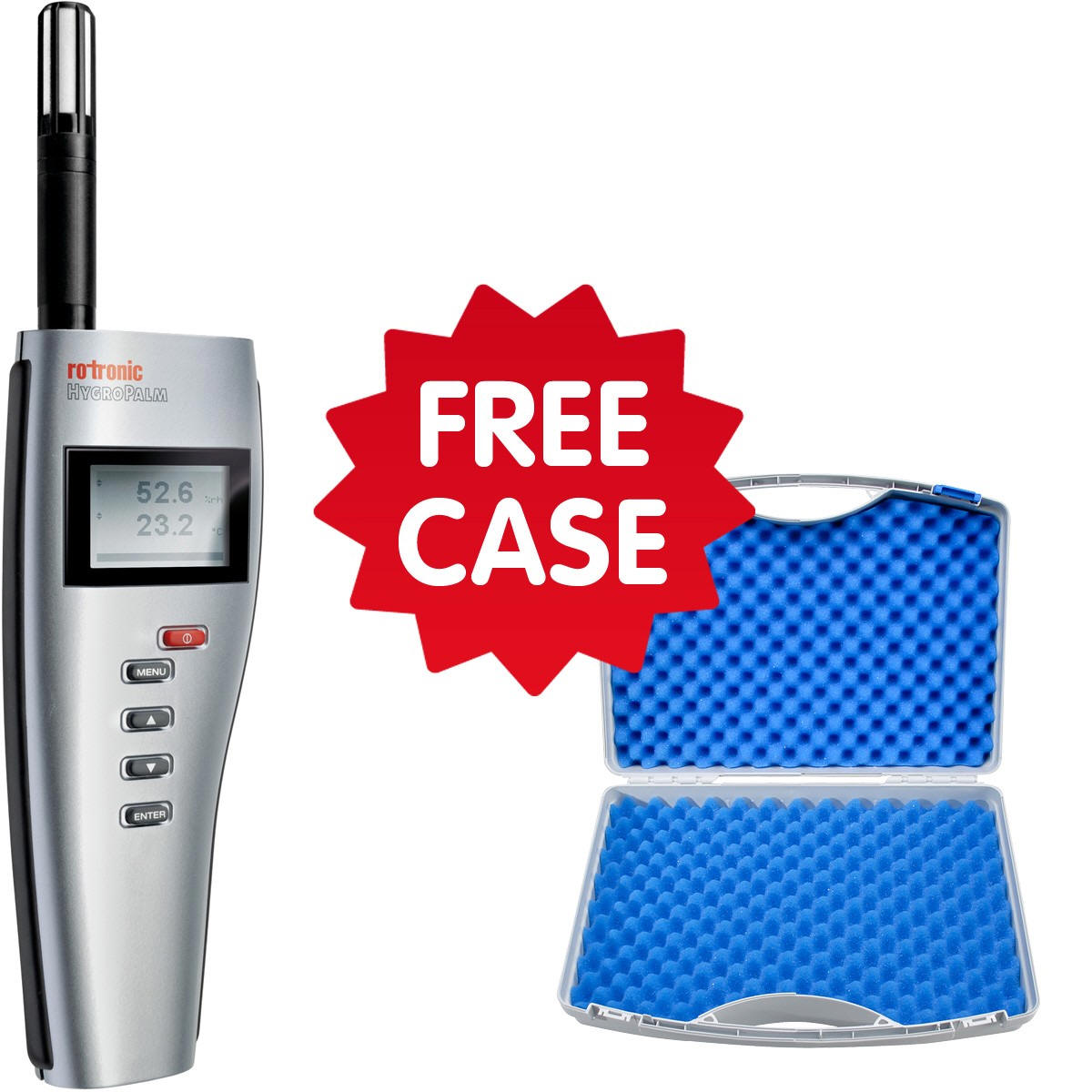

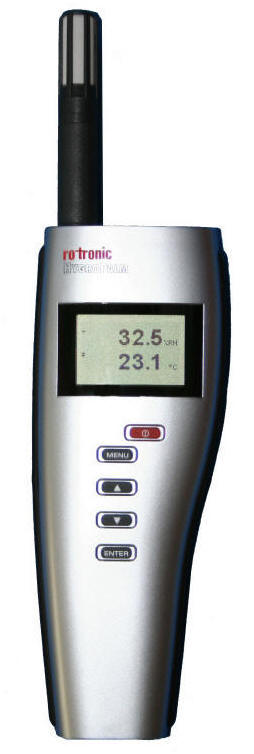

HygroPalm HP21-
kosteus-lämpötila käsimittari.
Nopein ja tarkin

HygroPalm HP21:
Humidity Temperature Handheld Indicator

The HP21 is a highly accurate hand-held indicator that displays relative humidity, temperature and the dew or frost point.
The
HP21 is perfect for spot checking HVAC installations, manufacturing and storage areas,
and generally for all ambient air measurement within the temperature range of -10 to 60°C.
The key features of the
HP21 will meet user requirements ranging from the most basic to demanding.

The
HP21 indicator has an extensive set of settings and functions that can be configured and
enabled by the user with the
ROTRONIC HW4 software.
In spite of its sophistication, the
HP21 can still be used just as a simple humidity and temperature indicator.
Whether you decide or not to take advantage of its full potential, the
HP21 will let you have it your way.






ROTRONIC
FATTORE Vitale & Co.

Since 1983

HygroClip2

ROTRONIC uusi HygroClip-anturi HC2-S
vallankumouksellinen anturi!

Kosteuden ja lämpötilan mittaava anturi

  A probe revolution

Bassersdorf (Switzerland), 6 May 2008

ROTRONIC, based in Switzerland, has extended its leadership in humidity and temperature measurement with the introduction of the
HygroClip 2.

The new HygroClip 2, the second generation of the HygroClip family,
is reaching a level of performance not seen before in the field of humidity measurement.

The AirChip3000 – the new standard in humidity measurement

The AirChip3000 forms the core of the new HygroClip 2.

The AirChip 3000 capabilities include the compensation of humidity and temperature at 30,000 reference points, the recording of 2000 data points, and the calculation of dew point.

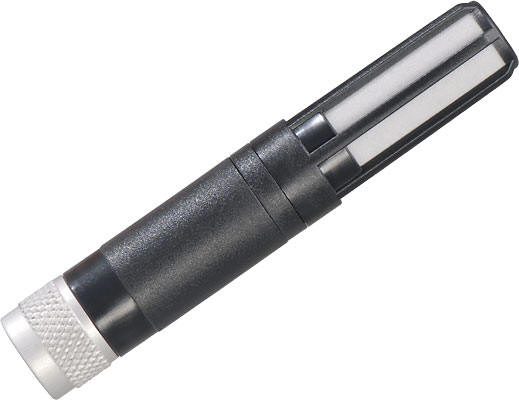

 ROTRONIC HC2-S
kosteus- ja lämpötilamittava-anturi
Our standard and most cost effective probe for the measurement of humidity and temperature in air using handheld instruments, dataloggers or transmitters.

Fully interchangeable with a digital output to
ROTRONIC products such as the HygroPalm handheld and HygroFlex transmitters.

The
HygroClip2-S also has two analogue 0...1V output signal for OEM or datalogging applications.


 Our standard and most cost effective probe for the measurement of humidity and temperature in air,
using handheld instruments, dataloggers or transmitters.

Fully interchangeable with a digital output to
ROTRONIC  products such as the HygroPalm handheld and HygroFlex transmitters.

The
HygroClip2-S also has two analogue 0...1V output signal for OEM or datalogging applications.


The AirChip 3000 - a probe with active intelligence

The AirChip 3000 can do even more, including self-diagnostics.

If sensor accuracy declines significantly, the AirChip 3000 recognises the problem and will issue an alarm.

It also combines within itself an ASIC (Application Specific Integrated Circuit), a micro-controller and a non-volatile, electronic memory (EEPROM).


Uusin kosteus-lämpömittari muistilla
HygroPalm HP21

Datasheet_HygroPalm21_22_ 59002 E.pdf





The new sensor technology from ROTRONIC !

Combined with the new technology of the AirChip3000, ROTRONIC has further improved the humidity sensor.

  Today, the HygroClip 2 provides reproducibility and a guaranteed system accuracy of < 0.8 % r.h. and 0.1°C.

In addition, response time has been significantly improved, and new filter technology provides even better protection for the sensor against environmental influences.

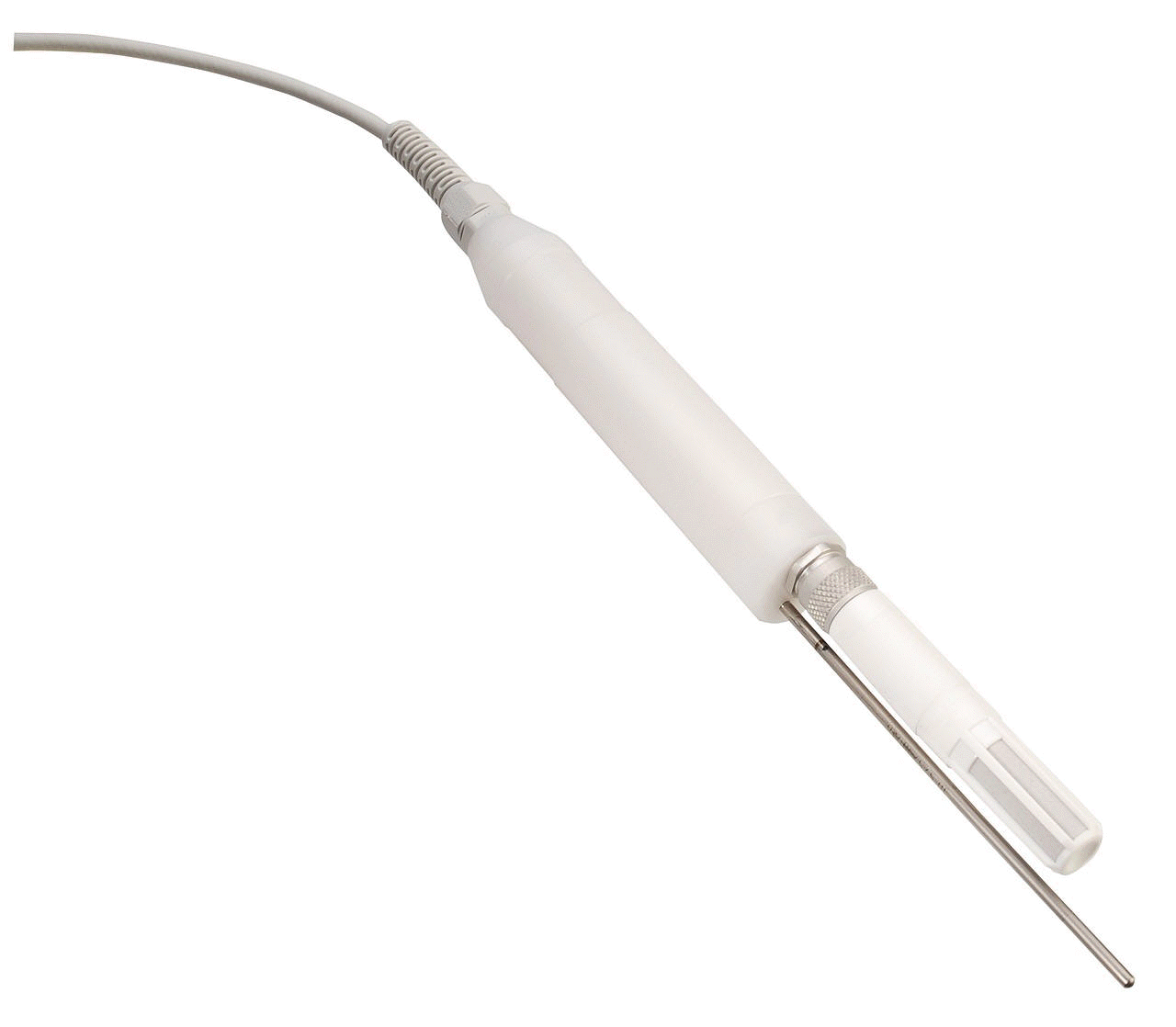

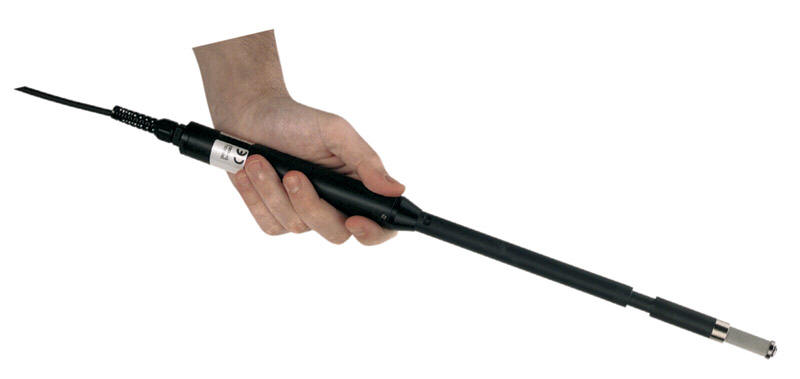

HC2-HK40
Handheld probe for measurement in applications from -100 to +200°C in conjunction with the HygroPalm 22 handheld indicator.

Combining all of these features with an operating range of up to 200°C provides a level of performance no other humidity sensor in the world can equal.

Versatile

Of course, the HygroClip 2 is suitable for use with all ROTRONIC products - from handhelds, transmitters and data loggers to the meteo probe.

As our product development moves forward, the HygroClip 2 will be integrated in all of our products.

For OEM customers the analog, freely scaleable signals and the UART interface, provide an easy path to integration into any system.

Still a guarantee: Swiss Made

All of this combined makes the HygroClip 2 the best humidity product on the market today, and one that currently also has no competition in terms of quality and longevity.


Kosteus- ja lämpötila-anturi

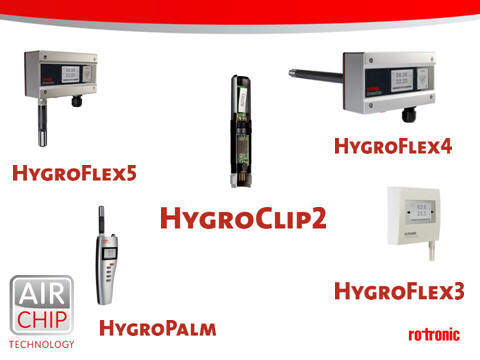

ROTRONIC-HygroClip2 and the AIRCHIP 3000

ROTRONIC, based in Switzerland, has extended its leadership in humidity and temperature measurement with the introduction of the HygroClip 2.

The new HygroClip 2, the second generation of the HygroClip family, is reaching a level of performance not seen before in the field of humidity measurement.
read more

Pääkatalogi

 ROTRONIC  Katalogi 2009-2010



The complete range of ROTRONIC's humidity measuring equipment is now available with our new catalog.

Particular mention must be made to the launch of the HygroClip2 and AirChip 3000.
read more

ROTRONIC HygroPalm21/22

Kosteus/lämpötilamittari
ROTRONIC HygroPalm21/22

The HygroPalm21/22 –series represents a new generation of portable humidity/temperature instruments utilizing the very latest AIRCHIP3000 technology achieving a degree of accuracy not seen before.

The HygroPalm is a highly accurate hand-held indicator that displays relative humidity, temperature and dew point.
read more



Kosteus- ja lämpötilalähetin
Rotronic HygroClip 2:n pohjainen

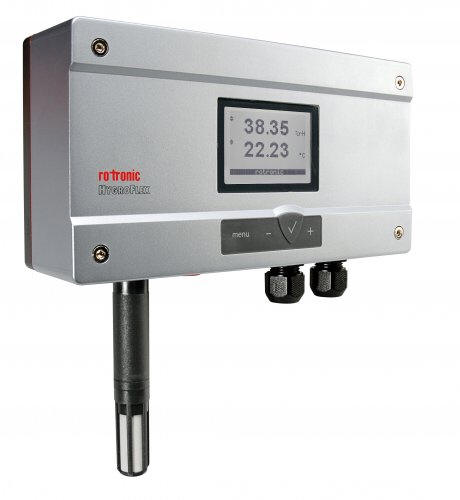

ROTRONIC HygroFlex5 Humidity & Temp Transmitter

ROTRONIC'S new HygroFlex5-series is the latest development in transmitters for humidity, temperature and dew point.

The HygroFlex 5-series is ideal for all applications where exact measurement of humidity and temperature is of decisive importance, e.g. the food and pharmaceutical industries, printing and paper industries, meteorology, agricultural sector, archaeology, climatology, etc.
read more



ROTRONIC - HygroMer Humidity Sensor

Kosteusmittauselimet
ROTRONIC - HygroMer Humidity Sensor

The new HygroMer humidity sensors from ROTRONIC.

ROTRONIC, based in Switzerland, has significantly improved the HygroMer humidity sensor family to meet new market requirements by incorporating new materials and production processes.

The result is impressive: improved long term stability, improved resistance to chemical contaminants, and the

HygroMer-Humidity Sensor
is the only humidity sensor probe that can operate in temperatures up to 200°C.

ROTRONIC  launched the first capacitive sensor to the market in 1980.

Capacitive sensors have proven over the years to be well suited for measuring humidity.

In electrical terms their configuration is relatively simple:

a polymer, sandwiched between two electrodes,
that changes its electrical properties based on the water vapour present, forming a variable capacitor.

The electrodes are intentionally designed so that the water molecule can pass through to equilibrium with the polymer.

New sensors have been developed and added to the HygroMer sensor family.

These sensors handle rougher applications than is possible with current sensors.

With these additional new sensors, ROTRONIC is now able to offer application-specific products with the ideal sensor.

If rapid sensor response time is a requirement for a particular application, ROTRONIC has the suitable sensor.

If the sensor is subjected to high humidity levels for a long period, ROTRONIC has the suitable sensor.

If H2O2 is used in sterilisation applications, ROTRONIC has the suitable sensor.

New polymers and materials, together with new processing methods, have made the proven HygroMer humidity sensor even better.

For more detailed information and printable illustrated material, visit our Web site.

The new HygroMer humidity sensors

ROTRONIC, based in Switzerland, has significantly improved the HygroMer humidity sensor family to meet new market requirements by incorporating new materials and production processes.

The result is impressive: improved long term stability, improved resistance to chemical contaminants,
and the
HygroMer-Humidity Sensor is the only h...





ROTRONIC HygroPalm21/22 ROTRONIC-HygroClip2 and the AIRCHIP3000

Kosteus/lämpötilamittari ja mittausanturi
HygroPalmHP22
ja HygroClipHP2-S


Takaisin etusivulle



2009 AHR EXPO Innovation Awards Competition

2009 AHR EXPO Innovation Awards Competition




The prestigious 2009 AHR EXPO Innovation Awards Competition represents the best submissions from the thousands of products on display at the 2009 AHR EXPO
www.ahrexpo.com

Honorees span the industrial marketplace in a total of nine product categories ranging from the latest developments in Green technology to the newest building automation tools.

The prestigious 2009 AHR EXPO Innovation Awards Competition represents the best submissions from the thousands of products on display at the 2009 AHR EXPO

Honorees span the industrial marketplace in a total of nine product categories ranging from the latest developments in Green technology to the newest building automation tools.

Rotronic
was awarded the winner in the category of Indoor Air Quality with our product the
HygroClip2 humidity and temperature probe.

Rotronic, based in Switzerland,
has extended its leadership in humidity and temperature measurement with the introduction of the
HygroClip 2.

The new HygroClip 2, the second generation of the HygroClip family, is reaching a level of performance not seen before in the field of humidity measurement.

The AirChip 3000 – the new standard in humidity measurement

The AirChip 3000 forms the core of the new HygroClip 2.

The AirChip 3000 capabilities include the compensation of humidity and temperature at 30,000 reference points, the recording of 2000 data points, and the calculation of dew point.

The AirChip 3000 - a probe with active intelligence

The AirChip 3000 can do even more, including self-diagnostics.

If sensor accuracy declines significantly, the AirChip 3000 recognizes the problem and will issue an alarm.

It also combines within itself an ASIC (Application Specific Integrated Circuit), a micro-controller and a non-volatile, electronic memory (EEPROM).

The new sensor technology

Combined with the new technology of the AirChip 3000, ROTRONIC  has further improved the humidity sensor.

Today, the HygroClip 2 provides reproducibility and a guaranteed system accuracy of < 0.8 % RH. and 0.1°C.

In addition, response time has been significantly improved, and new filter technology provides even better protection for the sensor against environmental influences.

Combining all of these features with an operating range of up to 200°C provides a level of performance no other humidity sensor in the world can equal.

Rotronic Instrument Corp. - 2009 AHR EXPO Innovation Awards Competition

Versatile

Of course, the HygroClip 2 is suitable for use with all ROTRONIC products:
 from handhelds, transmitters and data loggers to the meteo probe.

As our product development moves forward, the HygroClip 2 will be integrated in all of our products.

For OEM customers the analog, freely scaleable signals and the UART interface, provide an easy path to integration into any system.

Still a guarantee: Swiss Made

All of this combined makes the HygroClip 2 the best humidity product on the market today, and one that currently also has no competition in terms of quality and longevity.

For more detailed information and printable illustrated material, visit our Web site:

www.rotronic-usa.com

Contact partner for press:

Rose Mannarino

rose@rotronic-usa.com

For more detailed information and printable illustrated material, visit the  SwissWeb site:
www.rotronic-humidity.ch

ROTRONIC

 - Your competent partner for all matters relating
to all aspects of humidity and temperature measurement.


For 40 years, ROTRONIC has been combining technical innovation with Swiss quality.

The new HygroClip 2, with its integrated AirChip 3000, is setting new standards in terms of accuracy, operating range and OEM flexibilty.

ROTRONIC sells their products worldwide in 40 countries and has branches in the USA, Germany, Great Britain, France, Taiwan, Singapore and China.

In Finland you'll find all ROTRONIC  instruments  from

FATTORE Vitale & Co.
Distributor of
ROTRONIC  products from 1983!

Humidity & Temperature Measurement

HygroClip Probes


HygroClip2-S / HC2-S


HygroClip® is a high quality probe for the measurement of humidity and temperature, with digital and analogue output signals

Overview HygroClip Probes



Transmitters

ROTRONIC industrial transmitters are robust, high quality products designed specifically for demanding commercial and industrial applications.

Overview Transmitters


Handheld Instruments

Rotronic handheld instruments are highly accurate and very easy to use and maintain.
They are suitable for many different applications.

Overview Handheld Instruments


High End Data Loggers

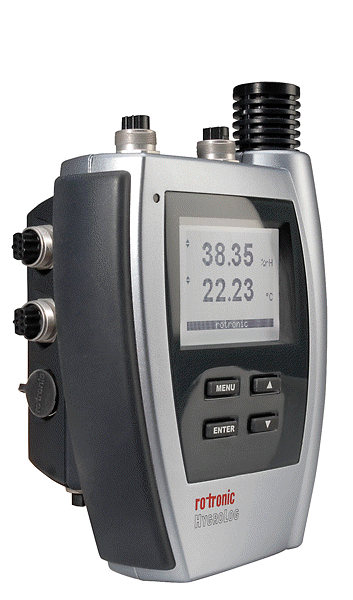

HygroLog NT3-DP

ROTRONIC data loggers provide valuable information on the climate conditions, which may have a significant impact on people, material and objects
Overview Data Loggers


Meteorology
Ilmatieteislaitteet


Our meteorolgy probes are robust high quality products, developed for demanding applications and a long lifetime.
Overview Meteorology






FATTORE Vitale & Co.

Since 1983


Poistuva rinnakkaissarja
HygroClipS-Sarja




Rotronic On Line
http://www.rotronic-humidity.com

Tutustu myös ROTRONIC -yhteistyökumppanimme mielenkiintoisiin web-sivuihin

 Sveitsissä

USA:ssa

Saksassa

Ranskassa

Englannissa

ROTRONIC Index B



Vuodesta 1983 Suomen markkinoilla olleet Tramex ja Rotronic menestyivät pitkäaikaistutkimuksessa,
Tramex Concrete Moisture Encounter  ja

Rotronic AwVC -laitteillaan, pyydä tietoa!

Sivun alkuun

Takaisin etusivulle
